    Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box

    Ask Lasest Price
    Brand Name : Twilight Optic
    Model Number : TW-FAT-16B
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000pcs/day
    • Product Details
    • Company Profile

    Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box

    16Port Fiber Optic Splitter Box SC/LC/ST/FC FTTH FTTX FTTB Indoor/Outdoor


    Description

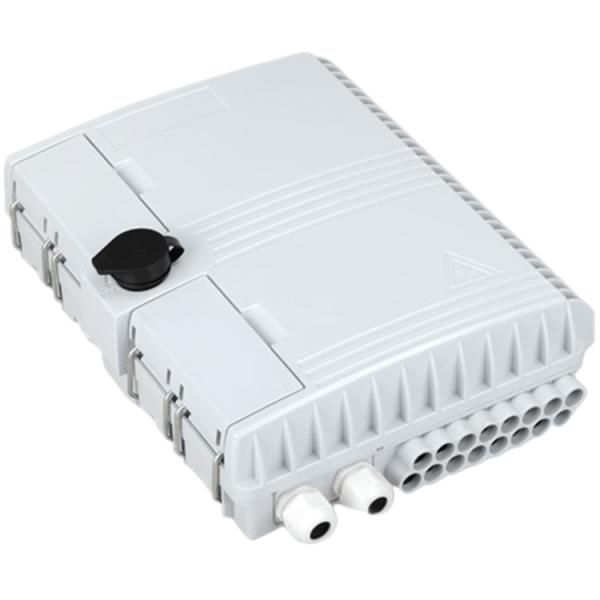

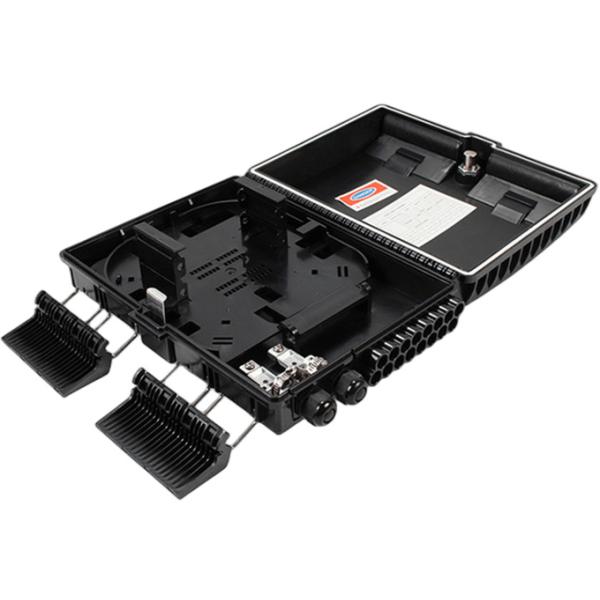

    FAT-16B fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
    Name16/32Core PLC Spliter ABS Box Type Fiber Optic Termination Enclosure
    UseFTTH FTTX FTTB
    Application TypeIndoor/Outdoor
    Mounting TypeWall-mount/Pole-mount
    Water-proof LevelIP66
    MaterialPC+ABS
    ColorBlack/White
    Size295*220*85mm
    Adapter TypeSC/LC/ST/FC
    Max Capacity16 Ports (SC), PLC 1X8 (SC)
    Weight1.57kg
    Work Temperature-40~+85℃

    Features


    Water-proof design with IP-66 Protection level.
    Integrated with splice cassette and cable management rods.
    Manage fibers in a reasonable fiber radius condition.
    Easy to maintain and extend the capacity.
    Fiber bend radius control more than 40mm.
    Suitable for the fusion splice or mechanical splice.
    2 pcs of 1*8 Splitter can be installed as an option.
    Efficient cable management.
    16 ports cable entrance for drop cable.
    ♦ Black can be made as an option.
    Application

    Telecommunications subscriber loop
    Fiber to the home (FTTH)
    LAN/WAN
    CATV


    Details Picture


    Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box

    Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box

    Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box


    Color


    ► Black Color can be made as an option


    Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box

    Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box

    Indoor / Outdoor 16 Port Splitter Fiber Optic FTTH Splitter Box
