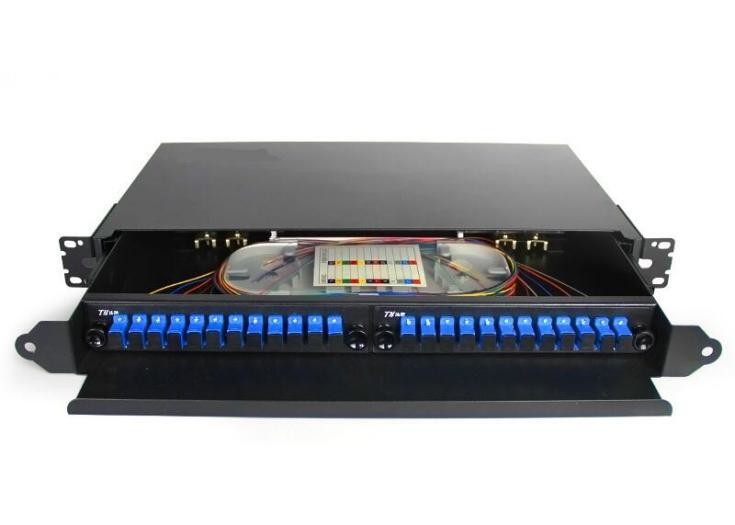

Rack Mount Fiber Patch Panel Optical Distribution Frame Odf Fc 12
Core Pigtail Pull-Out
Description:
An optical distribution frame (ODF) is a frame used to provide
cable interconnections between communication facilities, which can
integrate fiber splicing, fiber termination, fiber optic adapters &
connectors and cable connections together in a single unit. It can
also work as a protective device to protect fiber optic connections
from damage.
Rack mount ODF is usually modularity in design with firm structure.
It can be installed on the rack with more flexibility according to
the fiber optic cable counts and specifications. This kind of
optical distribution system is more convenient and can provide more
possibilities to the future variations. Most of the rack mount ODF
is 19”, which ensures that they can be perfectly installed on to
the commonly used standard transmission rack.
Feature:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
1 pcs splice trays (each 12 fibers)
Max. capacity 24 fibers
4 fiber cable entry ports at rear side
White or black color
Splice tray inside changeable
Front mark on the plate is easy for identification and operation
Specification
Model | TW-DR04-1U |
Type | 19inch Rack Mount |
Material | Cold Rolled Steel |
Size W*D*H (mm) | 485*295*47 |
Capacity (core) | 12 to 24 |
Included accessories | 4pcs cable fix accessories, heat shrink tubes, cable ties, number
tapes, adapter screws |
Product color | |
Working temperature | -40~+85°C |
Storage temperature | -40~+85°C |
