2U 48 Port Fiber Optic Patch Panel Light Fc Simplex Slide Out ODF

Ask Lasest Price
Brand Name :	Twilight Optic
Model Number :	TW-DR03-2U-FC
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000pcs per week
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

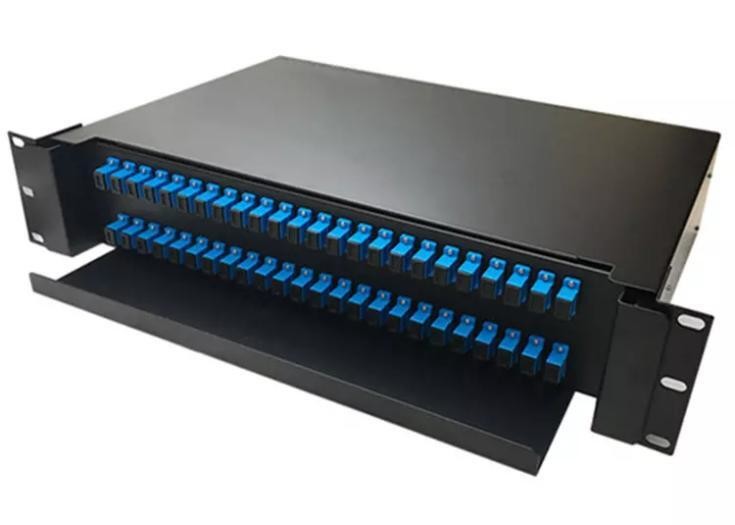

2U 48 Port Fiber Optic Patch Panel Light Fc Simplex Slide Out ODF

48 Ports Fc Simplex Slide-Out Optical Distribution Frame Odf 19inch 2u

Description:

Fiber patch panel series of optic distribution boxes ,which are middle capacity and

both side operation applicable in the branch connection of fiber termination ,working

as distribution box.

It is with standard 19 inch size and properly designed to control the bend radius of the

cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor

fiber optic cables connection storage, distribution and management.

Features:

❖ Standard size, light weight and reasonable structure

❖ Slide out drawer for easy cable management

❖ FC, SC, ST, LC adapter patch panel for option

❖ Front access panel design for easy operation

❖ Suitable for 19’’ or 23’’ standard optic distribution cabinets

❖ With metal front cover

❖ 2-8 pcs splice trays (each 12 fibers)

❖ Max. capacity 48 fibers

❖ 4 fiber cable entry ports at rear side

❖ White or black color

Specification

Model	TW-DR03-2U
Type	19inch Rack Mount
Material	Cold Rolled Steel
Size WDH (mm)	48529547MM
Capacity (core)	48
Included accessories	4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws
Product color	White or black color
Working temperature	-40~+85°C
Storage temperature	-40~+85°C

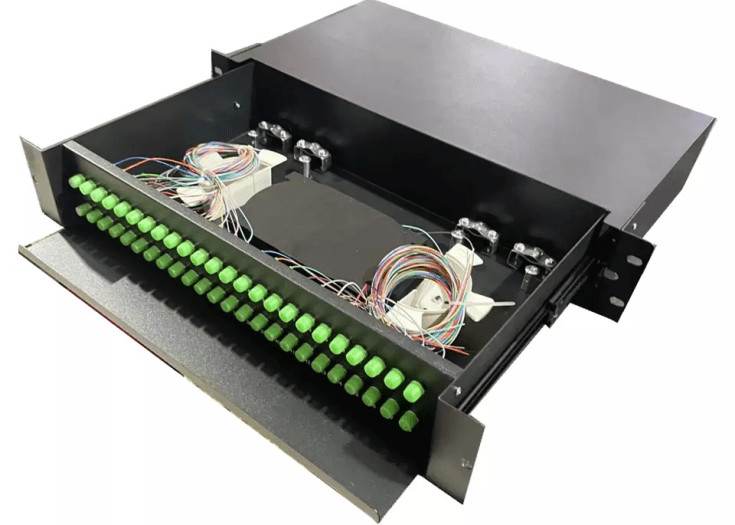

2U 48 Port Fiber Optic Patch Panel Light Fc Simplex Slide Out ODF

Application:

Telecommunications

Fiber to the home (FTTH)

LAN / WAN

CATV
